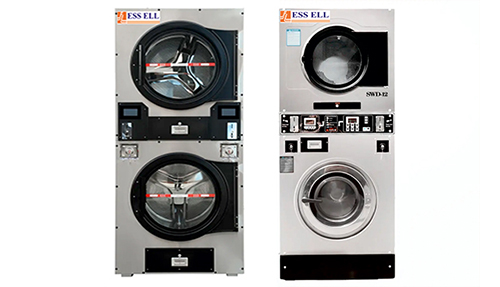

SWD Series Stack Washer - Dryer
Dryer drum rotates forward and reverse to make dry quickly
Stainless steel drum ensures anti rust
Self-Balance technology makes machine work more stable
The washing machine and dryer work individually due to separated controller.
1. For many businesses, space limitations can be a major concern. With the ability to deliver the same commercial-grade performance businesses need but in half the space, stack washer-dryers are ideal choice.
2. The commercial stacking dryer has two drums and is made from long lasting, durable pre-coated steel. This dryer is specifically designed to maximise productivity in the smaller sized laundry rooms
3. With a dry-to-dry time of less than one hour, our stack washer-dryers work fast and efficiently. With a 30-minute dry cycle, stack washer-dryer is the fastest, most powerful, dryer in its class.
4. We refuse to compromise on the engineering or quality of materials that we put into every machine. To provide the highest quality and reliability, we believe that every ESS ELL-branded product should be made by us.
5. Like every product in our brand, our stack washer-dryers are built to show up for work cycle after cycle, day after day, in even the harshest laundry environments. Using only the highest-quality materials and a heavy-duty frame, our stack washer-dryers are designed to withstand our extreme 1,000 hour test, running at maximum extract with an extreme out-of-balance load.
| Model | Units | SWD 6.5 | SWD 8 | SWD 10 | SWD 12 | SWD 15 | SWD 18 |
| Washer Capacity | Kg | 6.5 | 8 | 10 | 12 | 15 | 18 |
| Dryer Capacity | Kg | 6.5 | 8 | 10 | 12 | 15 | 18 |
| Washer Drum Dimensions | mm | 535 x 395 | 545 x 515 | 630 x 300 | 580 x 390 | 580 x 460 | 700 x 450 |
| Washer Motor Power | Kw | 0.38 | 0.45 | 1.8 | 1.8 | 1.8 | 1.5 |
| Inverter Power | Kw | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Dryer Drum Rim | mm | 568 x 420 | 568 x 570 | 670 x 380 | 700 x 480 | 750 x 650 | 750 x 650 |
| Dryer motor Power | Kw | 0.11 | 0.11 | 0.14 | 0.14 | 0.14 | 0.14 |
| Dryer Fan motor Power | Kw | 0.5 | 0.5 | 0.75 | 0.75 | 0.75 | 0.75 |
| Heating Power For Dryer | Kw | 1.5/3 | 3 | 9.8 | 15 | 15 | 15 |
| Gas Consumption | Kg/h | -- | -- | 1 | 1 | 1.2 | 1.5 |
| Steam Consumption | Kg/h | -- | -- | 8 | 9 | 10.8 | 13.5 |
| Dimension L x W x H | mm | 765 x 815 x 2050 | 765 x 815 x 205 | 940 x 1220 x 1900 | 940 x 1220 x 2100 | 940 x 1220 x 2100 | 1050 x 1370 x 2200 |
| Net Weight | Kg | 175 | 185 | 600 | 640 | 783 | 1100 |
